Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor

Name: Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor
Brand: HT SENSOR
Price: 1 USD

Quality Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor for sale

Brand Name : HT SENSOR

Model Number : BH93420-WS

Place of Origin : Baoji，China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000PCS/Month

Certification : ISO9001

Packaging Details : Standard Export Package

Delivery Time : 5-8 work days

Accuracy : 0.5%F.S

Material : Stainless Steel

Measurement Range : 0~10m...400m

Output Signal : 4-20mA

Power Supply : DC24V

Product Name : Sewage Level Sensor

Protection Level : IP68

Model : BH93420-WS

Contact Now

Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor

BH-WS Sewage Level Sensor

Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor

Introduction:

The BH93420-WS submersible level sensor employs a high-accuracy piezoresistive silicon sensing element housed in 316L stainless steel for maximum corrosion resistance. Designed for harsh liquid measurement applications, it reliably monitors fluid levels in:

Wastewater treatment: Sludge tanks, digesters, clarifiers
Chemical processing: Alum tanks, chemical storage vessels, lime slurry
Industrial storage: Oil tanks, sewage sumps, water reservoirs

With its fully welded construction and sealed electronics, this rugged transmitter withstands aggressive media while maintaining long-term stability—making it ideal for contaminated or abrasive liquids.

Product Features:

Specially designed for harsh environments
Explosion-proof marking : ExiaIICT6
High protection : IP68
Full 316L stainless steel structure with excellent corrosion resistance
High precision and good stability

Applications:

Compatible with 316LSS,noncorrosive liquids
Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs

Performance Parameters
Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	-10-80ºC
Operating Temperature	-20~100ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	316L Stainless Steel
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP67, IP68
O-Ring Seal	Fluoro rubber
Weight	~2.1Kg (without cable)
Cable Material	Polyethylene, Polyurethane,Teflon

0/1~5V
Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~10V
0.5~4.5V	5VDC

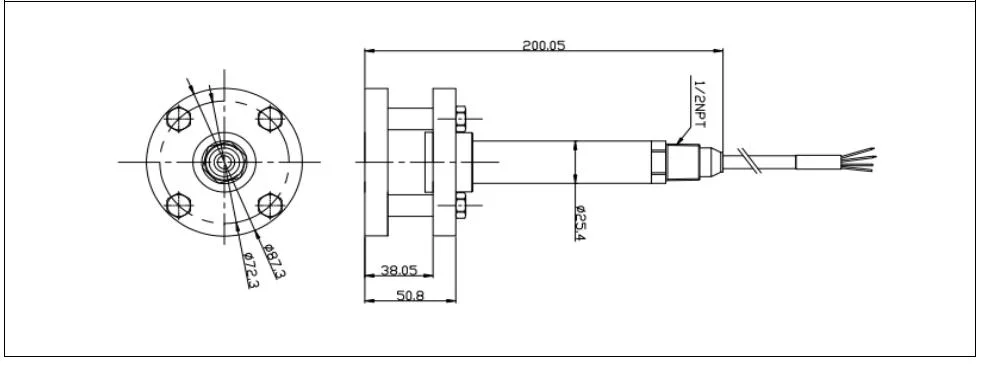

Outline Construction

Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.

2. The density of the measured medium should be specified.

3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.

4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

Order Guide
BH	Code	Outline Construction
	WS	Pressure Transmitter
		Measurement Range	0~10m…400m(H2O)
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Type
					G	Gauge Pressure
					A	Absolute Pressure
					S	Sealed Reference Pressure
							Code	Cable Material
							C1	PE
							C2	PU
							C3	PTFE
